Moka Pot: Steam Pressure and Thermal Management
Harness vaporisation expansion. Master the balance between boiler vapor pressure, ground bed resistance, thermal heat transfer, and violent sputter cessation.
The Steam Expansion Cycle
Patented by Alfonso Bialetti in 1933, the moka pot operates via steam displacement in a sealed lower boiler vessel. As water heats, thermal expansion creates saturated water vapour above the water line. When vapour pressure reaches approximately 1.5 bars (21 psi), it exerts force downward onto the surface of the heated water.
This trapped pressure leaves the liquid with only one egress route: downward into the funnel tube, upward through the compacted bed of ground coffee, past the upper metal filter screen, and out of the vertical chimney pipe into the collecting upper reservoir. The moka pot does not push steam through the coffee; it uses steam pressure to force sub-boiling water upward through the bed.
Combating the Scorched Taste Trap
The most common flaw in domestic moka pot brewing is intense, acrid bitterness caused by thermal overheating. When you fill the lower boiler with cold tap water and place the assembled brewer over high heat, the entire metal apparatus—including the aluminium or steel coffee funnel—absorbs intense radiant heat long before pressure builds.
By the time water rises into the coffee bed, the dry grounds have baked against 100°C+ metal surfaces for several minutes. To stop this roast damage completely, fill the lower boiler with preheated boiling water straight from a kettle. Fill strictly to the lower rim of the brass safety release valve. Assemble the hot brewer using a dish towel for grip, and place it immediately over low to medium-low burner heat. Liquid will begin flowing upward within 60 seconds without scorched thermal degradation.
| Operational Phase | Visual / Acoustic Indicator | Action Required |
|---|---|---|
| Boiler Priming | Steam rises from preheated kettle water | Fill to bottom of safety valve; insert dry funnel |

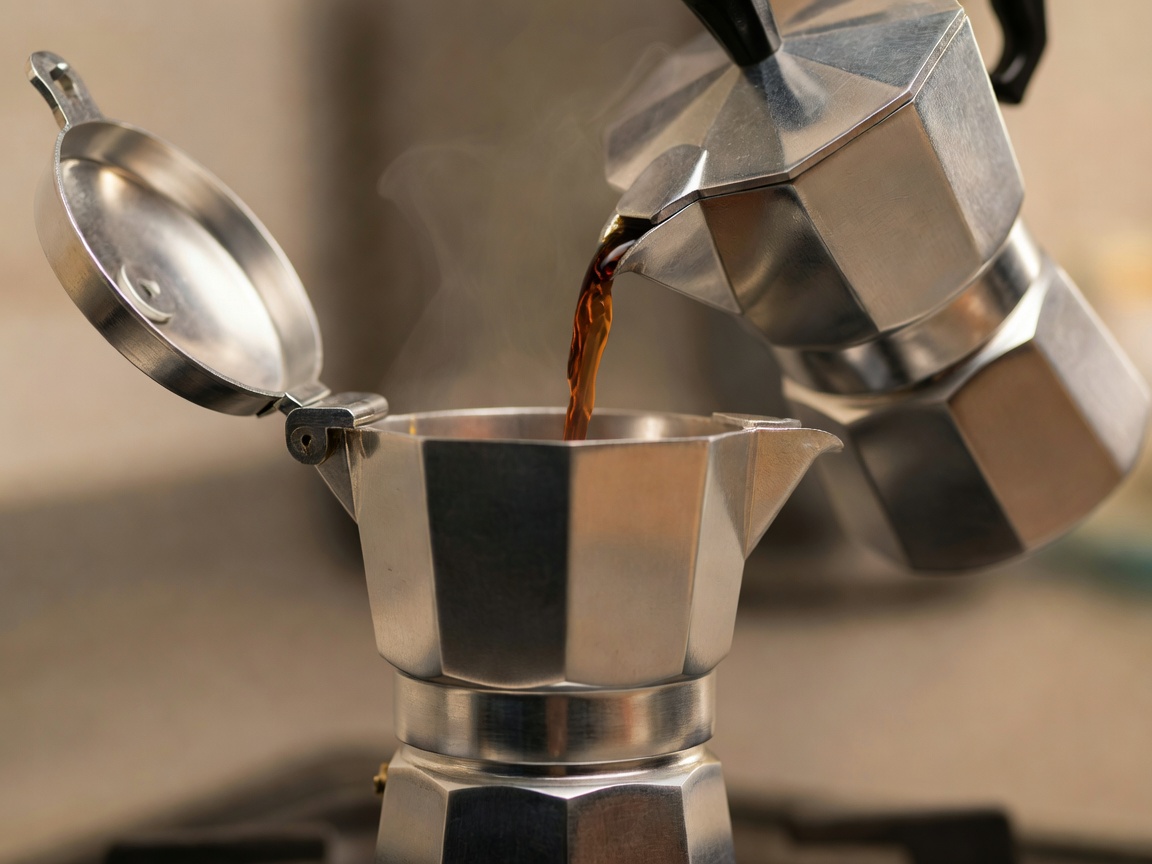

| First Flow | Thick, dark syrup oozes smoothly from chimney | Keep burner at lowest steady heat setting |
| Full Column | Golden-brown stream flows smoothly down column | Leave lid open; monitor flow velocity |
| Strombolian Sputter | Violent bubbling, splashing, white steam hiss | Remove immediately; submerge boiler base in cold water |
Grind Parameters and the Tamping Rule
The moka pot requires a grind coarser than commercial espresso, but notably finer than paper drip pour-over—typically 400 to 550 microns. If the coffee is ground to powdery espresso fineness, the relatively modest 1.5 bars of pressure cannot overcome the bed resistance. The safety release valve will hiss, venting steam into the room while scorching the stalled grounds inside.
Never tamp moka pot grounds. Repeat: zero mechanical tamping. Pour grounds loosely into the funnel until slightly mounded, tap the funnel side gently with your knuckles to settle density pockets, and level off the rim with a flat finger. Tamping creates excessive hydraulic resistance that guarantees channel blowouts, gasket leaks, or dangerous boiler stall pressure.
The Quench: Halting the Sputter Phase
The terminal phase of moka pot extraction is known in physics as the Strombolian phase. As the boiler water level drops below the funnel intake pipe, steam rushes directly into the funnel tube alongside remaining superheated liquid. This produces a loud, sputtering, spitting noise.
This final steam-water spray exceeds 100°C and strips astringent, wood-like tannins from spent grounds within seconds. The instant you hear the first erratic sputtering sound, remove the moka pot from the heat and run the lower boiler base under a cold tap or set it into a shallow pan of cold water. This thermal shock instantly collapses internal boiler pressure, halting flow instantly and locking in rich, chocolatey sweetness.
